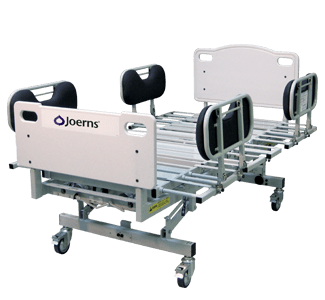

RC 750

Multi-functional bariatric capability in an affordable package

The RC 750 is prepared to handle a patient who may require a bed that can support more weight. The RC 750 is a 750 lb capacity bed frame with three function electric control. The simple to use pull pin system allows caregivers to easily expand the bed frame’s width from 39″ to 54″ to accommodate a variety of body contours and emergency transport through 40″ door frames. The RC 750’s economical price makes it an excellent bariatric bed solution for the alternate care market.

Product Details

  • Split frame design for easy delivery and storage
  • Expandable bed deck permits transport through doorways as narrow as 40″
  • Accommodates mattresses up to 54″ wide
  • 3 position, wing type, padded side rails
  • 3 functions including hi-low, head (Fowler) and knee gatch
  • IV pole and Foley bag holder
  • 750 lb weight capacity
  • Optional trapeze
  • Accommodates mattresses 37″, 39″, 42″, 48″ or 54″ W
  • Bed deck length: 84″ (96″ with optional extender)
  • Overall frame size: 39.5″ to 56.5″ W x 88″ L
  • Deck height: 17″ to 30″
  • Head/Footboard width: 38″
  • Total weight: 483 lb
  • Power requirements: 115 VAC 60 Hz 10.5 AMP
  • Warranty: 5 years ‐ workmanship and materials, 1 year ‐ electrical system
